Univox® IR System

Univox IR system for assistive listening; transmitter with 72 diodes and pendant receivers designed to be used with T-coil neckloop or headphones.

IR System with neckloop

The Univox IR System provides wireless, secure assistive listening and is suitable for use in boardrooms, houses of worship, cinemas, theatres, courtrooms, auditoriums and class rooms etc. when Induction loops* are not.

Univox infrared systems offer high quality audio with two mono channels or single channel stereo operation. The powerful transmitter features 72 IR-diodes for high performance area coverage to 400m2.

It is quick and easy to install and is ideal for applications where information security and overspill control are critical.

Features & Benefits



  • Secure assistive listening
  • Powerful 2 W transmitter to cover up to 400 m²
  • Automatic gain control (AGC)
  • Low weight, simple to use-receivers
  • Receivers can be charged with standard USB chargers
  • Receivers are compatible with the Univox neck loop and standard headphones



Large image of area coverage

IR-1411 Transmitter: Infrared Transmitter for small to medium size area

High Performing Assistive Listening

Univox® IR1411 is a compact yet powerful IR transmitter for small to medium size venues. The sleek low-profile design allows for quick and easy installation in boardrooms, houses of worship, cinemas/theatres, court rooms, nursing homes, auditoriums and class rooms etc.

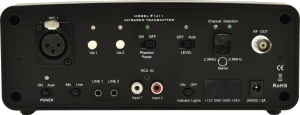

IR 1411 Transmitter Rear

The powerful infrared transmitter features an all-in-one modulator and 72-diodes emitter for high performance and large coverage – up to 600 m2 with a single unit.

Univox® IR1411 provides wireless assistive listening with high audio quality. With two mono channels or single channel stereo operation on 2.3 and 2.8 MHz carrier frequencies, the unit is ideal for applications where information security and overspill control is of importance.

Features & Benefits

  • Secure wireless communication
  • Compact design
  • 2 Watt infrared emitter with integrated modulator
  • Selectable 2.3 and 2.8MHz carrier frequencies
  • 600m2 (6458ft2) coverage range
  • 2 mono channels or 1 stereo
  • 72 high efficiency diodes for maximum coverage
  • Convection cooled
  • Automatic gain control
  • Power-save mode with Auto On/Off function
  • Audio level indicators
  • Volume control
  • Wall/ceiling mount included



PDF Brochure

PDF User guide

IRR-1 Receiver: Pendant Infrared Receiver

High Performing Assistive Listening

Univox® IRR-1 receiver is a wireless 2-channel, stereo infrared pendant receiver designed for professional applications. Equipped with multiple receiving diodes for increased sensitivity, the receiver works with transmitters operating on 2.3/2.8 MHz bandwidth.

Powered by a rechargeable Lithium Polymer battery, this lightweight receiver is to be worn around the neck, pendant-style (with supplied lanyard) or clipped on a pocket. The unit is easy to operate – select the channel frequency and adjust the volume with the intuitive slide volume control.

Univox® IRR-1 receiver can be used with Univox NL-90 neck induction loop to supplement personal hearing aids with a telecoil /T-switch setting, as well as with EM-101 single-sided earphone and EM-201 headphones for users with no or little hearing loss.

IRR 1 Receiver Rear

Features & Benefits

  • IR transparent case for wider scope of coverage and greater sensitivity
  • Li-Polymer battery for quick charging and light weight
  • Selectable 2.3 and 2.8 MHz carrier frequencies
  • 2 mono channels or 1 stereo
  • Unit automatically turns on when 3.5 mm jack is inserted
  • USB charging port (cable included)
  • Lanyard (included) and pocket spring clip on back to wear in a variety of ways
  • Slide volume and channel selection for simple operation
  • Designed to be used with either Univox neck loop or head-/earphones (accessories)



PDF Brochure

PDF User guide

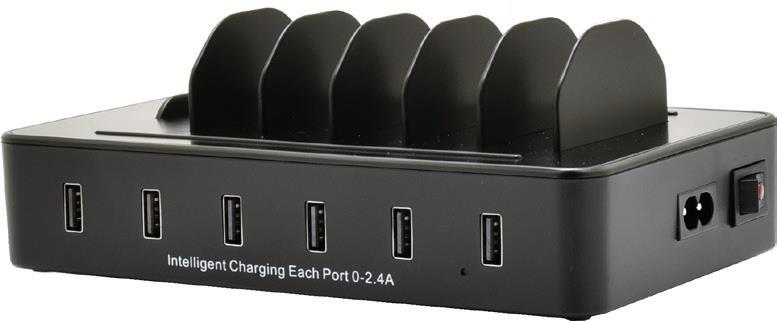

USB 6 slot charger: for 6 devices

Multiple USB-port charging station

USB charging station can charge up to 6 devices simultaneously. Equipped with smart IC chipset, fast charging ports, over-charge and over-heat protection, the unit allows for easy and efficient charging.

Connect the rechargeable units to the charger station by using a micro-USB cable. Just plug the USB end of the cords into the side of the charging station, set the unit on its side with the charging port facing the cable, and plug it in to charger. The charging station plugs directly into the wall, taking up only one outlet to charge up to five devices at a time.

1.5m (2-pin) connect cable is included.



Features & Benefits

  • 6 USB charging ports;
  • All fast charging ports (2,4A)
  • Input 100-240VAC
  • Output 50W 5V 10A max
  • Size 183 x 112 x 63mm
  • Weight 430g



PDF Brochure

PDF User guide

NL-90 Neck Loop

Personal Hearing Loop

The neck loop is developed to allow for hard of hearing persons to listen to various audio devices such as guide systems, radio receivers, MP3-players, computers as well as induction loop drivers through their own hearing aid(s). This allows the user to experience the best possible audio quality. Note that the level is dependent on the output power from the signal source.

The neck loop is easily connected to the 3.5 mm audio output of the source just as a pair of regular earphones. It is worn around the neck on the outside of the clothing. When the T mode is activated the audio signal is inductively transferred to the hearing aid(s). The neck loop requires no batteries. The length of the cord is 55 cm/22 inches so that it can be connected to an audio source in a holster, belt clip or pocket.

Univox neck loop is a very simple product worth its price and provides a high quality result.

Features & Benefits

  • Easy to use
  • Works with all types and makes of T-coil equipped hearing aids
  • Connects directly to many types of sound sources with 3.5 mm audio output
  • Connects through adapter cable to a hearing loop driver’s loop output
  • Low weight for high wearing comfort
  • Discreetly black
  • Cable: 55cm/22″
  • Connector: 3.5 mm plug, 5 Ohm



PDF Brochure

EM-201 headphones

3,5mm stereo, cable 1,2m

Accessories

230904: Headphone pad, spare part for EM-201
