Fulgor Service Products

FULGOR SERVICE specialises in broadcasting intelligible high quality audio in acoustically challenging environments. With expertise gained over 30 years of leadership in the field of amplification for sacred buildings they are a principal supplier to the Catholic church on three continents.

Their products are directly designed, tested and manufactured in their own factory in Arcola (SP, Italy) using locally sourced materials and a highly skilled workforce.  Quality and performance are assured with the flexibility for customisation

Places of worship present a unique set of challenges for intelligible sound reproduction.  Not only are many of these buildings highly reverberant, the nature and age of the construction means opportunities to run additional cabling are rare and expensive negating the use of technologies such as steerable line array speakers with dsp.  Fulgor Services have solved this problem bringing 21st century technology to all these environments at affordable prices with minimal disruption

Installation Examples Click to Down load PDF

Active Speaker Arrays

The linear array speakers from Fulgor Services are all designed and built in their Italian factory. The aesthetically pleasing slim housings combine 2 to 20 speakers to produce crystal clear sound with natural timbre for speech. The standard colours are  white and Volcano, but they can also be supplied in other RAL colours if required.

Active One System technology

This unique technology is already revolutionising audio installations in Catholic churches on 3 continents and is now available to all in the UK. By combining the audio signal with the D.C. power a new generation of active speakers is possible.  Places of worship are often acoustically challenging environments, linear speaker arrays with digital signal processing can provide a step change in audio clarity and intelligibility, but these complex systems have always been too expensive and costly to install in all but the wealthiest venues.  Active One System technology changes this. The dsp speakers are competitively priced but most significant is only 2 conductors per speaker array are required (1mm2 csa min.) If your client has an existing 2 wire speaker system, you can transform the sound finesse of their audio in a day by installing Fulgor Active Array Speakers.

Simply remove the old speakers and replace with Fulgor Active array Speakers, Vertical Activo or Activo Focus, connect them to the All One supply then adjust the audio signal characteristics on each speaker in turn, including the audio delay, sit back and enjoy. Leave cable installation to the less well informed.

Active array speakers:

ALL One -Speaker power supply with composite audio for multiple speakers

ALL ONE-Power supply and signal source for up to 20 Speaker array

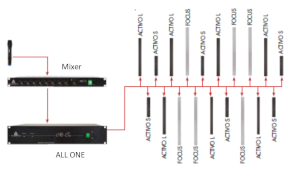

All in one speaker example

ALL ONE is a power supply and signal source for up to 20 Speaker arrays

Vertical ACTIVO Speaker array

ACTIVO digital DSP amplified active speakers are for multipoint systems where high levels of audio quality and intelligibility are required.

They have an integrated DSP and ONE circuit on board which enables them to work on a simple twin core cable. Both signal and 43Vd.c. power are transmitted on this cable. This makes installations easy without compromising audio clarity.

High precision calibration of volume tone and delay are made, area by area, speaker by speaker, ensuring a final result impossible to achieve with a conventional system. An ACTIVO multipoint audio system does not need an expensive multi-processor output and numerous amplifiers, cables and dedicated lines, but simply a single power supply and a twin core cable.   Vertical ACTIVO provides excellent dynamic pressure and acoustic homogeneity in the structure to be amplified ensuring greater intelligibility and sound definition to  satisfy even the most demanding designer.

Features

  • 2 - wire operation
  • Power/signal demux
  • DSP on board
  • Equalisation settings
  • Anti bump circuit
  • Slimline aesthetic construction
  • Low vertical dispersion
  • 160° Horizontal dispersion
  • Flexible mounting system for horizontal and vertical alignment
  • Reverse polarity protection

Applications

  • Multi point coverage
  • Acoustically challenging environments
  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres



PDF Fulgor Systems Catalogue

TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

TECHNOLOGY DSP an ONE demux
DSP 24bit- 48kHz
OUTPUT POWER 35W RMS ( 65W peak) at 8 ohms
PROTECTION input signal, revese polarity, short circuit
ANTI BUMP at switch on and switch off
EQUALISATION filter settings using propriatory controller
BANDWIDTH 50 to 1800Hz
S/N RATIO >98dB;distortion <0.3%
COOLING passive
POWER INPUT 40-45V from (ALL-ONE)
SIGNAL INPUT ONE enmux (from ALL ONE)
ACTIV S - Kg, HxWxD 3.5Kg, 560 x 100 x 50 mm
ACTIV L - Kg, HxWxD 6.9Kg, 1037 x 100 x 50 mm
ACTIV XL - Kg, HxWxD 8.5Kg, 1314 x 100 x 50 mm


Vertical ACTIVO Focus Speaker array

ACTIVO Focus adds vertical beam steering

Building on the architecture of the Vertical ACTIVO array these speakers feature a more powerful dsp and a 4 channel amplifier which combined using a customised algorithm controls the direction of the sound.

Each group of the ACTIVO Focus speakers are driven by separate DSP units and amplifiers to combine the main parameters level, bandwidth, delay, so as to create an homogeneous beam. The algorithm for ACTIVO Focus control  is built in, allowing the technician control over the volume, delay, vertical angulation of the beam from 0° to -10°. through an intuitive controller. And as with Vertical ACTIVO it all happens over a twin core cable.

Features

  • Acoustic beam control to 22 metres
  • Vertical beam steering 0° to -10°
  • 2 - wire operation
  • Power/signal demux
  • DSP on board
  • Equalisation settings
  • Anti bump circuit
  • Slimline aesthetic construction
  • Low vertical dispersion
  • 160° Horizontal dispersion
  • Flexible mounting system for horizontal and vertical alignment
  • Reverse polarity protection
  • Free control app Android/Apple

Applications

  • Multi point coverage
  • Acoustically challenging environments
  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres

TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

TECHNOLOGY DSP an ONE demux
DSP 28/56 bit- 48kHz
FOCUS CONTROL 250 - 1800Hz
ACOUSTIC BEAM DISTANCE controlled 20-22m
DISTANCE FOR SHORT MSSAGES Intelligibility upto 30m
DISTANCE FOR CONSTANT USE Intelligibility 20 - 22m
POINTING ANGLES 0°, -1°, -2°, -3°, -4°, -5°, -6°, -7°, -8°, -9°, -10°,
INTEGRATED POWER AMPS 4 x class D
OUTPUT POWER 50W RMS ( 100W peak) at 8 ohms
PROTECTION input signal, revese polarity, short circuit
ANTI BUMP at switch on and switch off
EQUALISATION filter settings using propriatory controller
BANDWIDTH 80 to 1800Hz
S/N RATIO >98dB;distortion <0.3%
COOLING passive
POWER INPUT 40-45V from (ALL-ONE)
SIGNAL INPUT ONE enmux (from ALL ONE)
 Kg, HxWxD 10.5Kg, 1606 x 100 x 50 mm


  PDF FULGOR SYSTEMS CATALOGUE

Passive Speaker Arrays

Vertical 2-4-6-8-10

Vertical is the new collection of Fulgor Service speakers designed, engineered and built to achieve the best speech intelligibility in the coverage area.

It is an array speaker system that combines a slim aesthetic with high quality intelligible sound reproduction and is typically used in multipoint systems.  It is available in a range of configurations, 2/4/6/8/10 speakers  equipped with an autotransformer to achieve the required sound pressure in the coverage area.

Vertical is designed and built in the Fulgor Service manufacturing facility in Italy using Italian made components this gives them full control in quality and production flexibility to meet the exacting requirements of their customers.

Vertical is available in two colours, white (RAL9010) and volcano (RAL7006), it can be produced on demand in different colours using the RAL scale as reference.

Features & Benefits

  • Slimline aesthetic construction
  • Low vertical dispersion (250)
  • 1600 Horizontal dispersion
  • Flexible mounting system for horizontal and vertical alignment
  • Autotransformer

Applications

  • Multi point coverage
  • Acoustically challenging environments
  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres



Vertical 2,4,6,8,10 speaker arrays pdf

TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

FREQUENCY RESPONSE 80 Hz ÷ 16.000 Hz
MAX SPL @ 1 mt 99 dB
DISPERSION HORIZONTAL ANGLE 160°
DISPERSION VERTICAL ANGLE 25°
APPLICABLE POWER 30 W on 100V; 100 W at 64 Ohm
IMPEDANCE 64 Ohm, 330 Ohm, 660 Ohm, 1 KOhm, 2
SENSIBILITY 1 W, 1 mt 89,6 dB
MOUNTING SYSTEM brackets “L” adjustable axis V axis H
DIMENSIONS (WxHxD) mm V2=100x290x50 V4=100x473x50
V6=100x658x50
V8=100x845x50
V10=100x1020x50
WEIGHT Kg V2=1,5
V4=2,4
V6=3,5
V8=5,5
V10=5,8

Vertical16-20 RAE

Vertical RAE provide sound directivity in both the horizontal and vertical planes.

Vertical Rae is the new collection of high efficiency array speakers by Fulgor Service.

Using high efficiency transducers the linear arrays manage to deliver a combined dynamic and sound pressure previously not heard.  By controlling the directivity both in the horizontal and vertical planes sound scattering in the coverage area is limited providing sound directivity control up to 30m.  Vocals are reproduced with very high intelligibility and excellent natural timbre.

The long narrow design makes the speakers aesthetically pleasing and easy to install.  They are suitable for use in houses of worship, conference rooms, council halls or anywhere else that will benefit from the highest quality sound with exceptional voice reproduction.

Vertical is designed and built in the Fulgor Service manufacturing facility in Italy using Italian made components this ensures full control in quality and production flexibility to meet exacting  customer requirements.

It is produced in two versions, with 16 or 20 drivers to suit the sound coverage required.  The standard colours are white (RAL 9010) and volcano (RAL 7006), on demand it can be produced in various colours using the RAL scale as reference.

Features & Benefits

  • 16/20 transducers
  • High output efficiency
  • Slimline aesthetic construction
  • Low vertical dispersion (100)
  • 1700 Horizontal dispersion
  • Flexible mounting system for horizontal and vertical alignment
  • Autotransformer

Applications

  • Single point coverage
  • Acoustically challenging environments
  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres



TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

  VERTICAL 16 RAE VERTICAL 20 RAE
TRANSDUCERS NUMBER 16 20
FREQUENCY RESPONSE 80 Hz ÷ 16.000 Hz 80 Hz ÷ 16.000 Hz
MAX SPL @ 1 mt 120 dB 122 dB
DISPERSION HORIZONTAL ANGLE 180° 180°
DISPERSION VERTICAL ANGLE 13° 10°
APPLICABLE POWER up to 300 W up to 300 W
SENSIBILITY 1 W, 1 mt 87,6 dB 87,6 dB
IMPEDANCE 8 Ohm 6 Ohm
MOUNTING SYSTEM brackets “L” adjustable axis V axis H brackets “L” adjustable axis V axis H
DIMENSIONS (WxHxD) mm 100 X 1530 X 50 100 X 1900 X 50
WEIGHT Kg 10,5 13,7

Directivity System

Directivity is a Fulgor Service audio system which provides effective control of the radiation pattern or sound beam in both the horizontal and vertical planes.

Directivity Sustem

Directivity system technology includes:

  • 1 x  digital processor with a specific algorithm
  • 1 x D&D control software
  • 1 x array speaker (16 or 20 transducers)
  • 1 x 6 channel class C D amplifier.

This system provides large area coverage of acoustically challenging environments. The sofware controls speaker array power in both the Vertical and horizontal planes giving excellent homogeneous coverage without generating harmful backscattering.  The result is crystal clear sound, with excellent speech intelligibility.

Directivity speaker is made up of groups of speakers connected separately with amplifiers, driven by the processor’s algorithm which allows operation. Two different model of speakers are available for Directivity system, according to the sound coverage requirement. The 2 available speakers  have a range of 25m to 45m respectively.



Directivity Data Sheet
Directivity Data Sheet, pdf

TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

INTERNAL BOARDS 2 DSP boards providing 8 controlled outputs
BAND WIDTH 20Hz to 20kHz /-1dB
DISTORTION FACTOR 0.005%
TOTAL DYNAMICS 103dB
EXTERNAL POWER SUPPLY 230V
AUDIO INPUT 4 micro line with XLR balanced
INPUT IMPEDANCE 6.6kohm
PHANTOM POWER selectable, -60dB to +20dB
OUTPUT 8 x XLR balanced, +8dB
EQUALIZERS 9 parametric bands on out standard- 5 filters, parametric out on directivity
DELAY 0.023 to 500ms
INTERFACE Serial, RS232 for programming
USER INTERFACE RP6 Panel
DIMENSIONS (WxHxD) mm 482 (431) x 45 x 200 :19" 1 U
WEIGHT Kg 2.4kg
DATA SHEET

UNDER CONSTRUCTION DO NOT USE

Amplifiers

AMP 150 - INTEGRATED AMPLIFIER WITH 10 channel mixer

Amp 150 is a 150W rms class A/B mono amplifier with integrated mixer.

It combines 7 mic inputs and 3 line inputs onto 1 amplified output with auto transformer and 1 line output.

AMP 150 is designed and built in the Fulgor Service manufacturing facility in Italy using Italian made components this gives them full control in quality and production flexibility to meet the exacting requirements of their customers.

Features & Benefits

  • 6 mic inputs
  • 3 Line inputs
  • 1 x 150Wrms output
  • 1 x line output
  • Autotransformer
  • Full metal construction (2U 19")
  • IN/OUT for Antilarsen or effects
  • Monito0r Output

Applications

  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres



Vertical 2,4,6,8,10 speaker arrays pdf

TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

FREQUENCY RESPONSE 50 Hz ÷ 20.000 Hz
OUTPUT (MONO) 150W RMS - 180W max
COOLING Passive - air cooled
PROTECTION self test and output short circuit
MIC INPUTS 6 x XLR, 0.8mV -22 kohm
CD INPUTS 2 x RCA, 80mV -1kohm
LINE INPUTS 2 x RCA 150mV 30kohm
LINE INPUT 1 x balanced XLR
OUTPUT IMPEDANCE 4/8/16 ohm
OUTPUT VOLTAGE 50V - 100V
VOICE FILTER on / off


Vertical16-20 RAE

Vertical RAE provide sound directivity in both the horizontal and vertical planes.

Vertical Rae is the new collection of high efficiency array speakers by Fulgor Service.

Using high efficiency transducers the linear arrays manage to deliver a combined dynamic and sound pressure previously not heard.  By controlling the directivity both in the horizontal and vertical planes sound scattering in the coverage area is limited providing sound directivity control up to 30m.  Vocals are reproduced with very high intelligibility and excellent natural timbre.

The long narrow design makes the speakers aesthetically pleasing and easy to install.  They are suitable for use in houses of worship, conference rooms, council halls or anywhere else that will benefit from the highest quality sound with exceptional voice reproduction.

Vertical is designed and built in the Fulgor Service manufacturing facility in Italy using Italian made components this ensures full control in quality and production flexibility to meet exacting  customer requirements.

It is produced in two versions, with 16 or 20 drivers to suit the sound coverage required.  The standard colours are white (RAL 9010) and volcano (RAL 7006), on demand it can be produced in various colours using the RAL scale as reference.

Features & Benefits

  • 16/20 transducers
  • High output efficiency
  • Slimline aesthetic construction
  • Low vertical dispersion (100)
  • 1700 Horizontal dispersion
  • Flexible mounting system for horizontal and vertical alignment
  • Autotransformer

Applications

  • Single point coverage
  • Acoustically challenging environments
  • Places of worship
  • Transport hubs
  • Convention centre
  • Court rooms
  • Lecture theatres



TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications

  VERTICAL 16 RAE VERTICAL 20 RAE
TRANSDUCERS NUMBER 16 20
FREQUENCY RESPONSE 80 Hz ÷ 16.000 Hz 80 Hz ÷ 16.000 Hz
MAX SPL @ 1 mt 120 dB 122 dB
DISPERSION HORIZONTAL ANGLE 180° 180°
DISPERSION VERTICAL ANGLE 13° 10°
APPLICABLE POWER up to 300 W up to 300 W
SENSIBILITY 1 W, 1 mt 87,6 dB 87,6 dB
IMPEDANCE 8 Ohm 6 Ohm
MOUNTING SYSTEM brackets “L” adjustable axis V axis H brackets “L” adjustable axis V axis H
DIMENSIONS (WxHxD) mm 100 X 1530 X 50 100 X 1900 X 50
WEIGHT Kg 10,5 13,7

Directivity System

Directivity is a Fulgor Service audio system which provides effective control of the radiation pattern or sound beam in both the horizontal and vertical planes.

Directivity Sustem

Directivity system technology includes:

  • 1 x  digital processor with a specific algorithm
  • 1 x D&D control software
  • 1 x array speaker (16 or 20 transducers)
  • 1 x 6 channel class C D amplifier.

This system provides large area coverage of acoustically challenging environments. The sofware controls speaker array power in both the Vertical and horizontal planes giving excellent homogeneous coverage without generating harmful backscattering.  The result is crystal clear sound, with excellent speech intelligibility.

Directivity speaker is made up of groups of speakers connected separately with amplifiers, driven by the processor’s algorithm which allows operation. Two different model of speakers are available for Directivity system, according to the sound coverage requirement. The 2 available speakers  have a range of 25m to 45m respectively.



Directivity Data Sheet
Directivity Data Sheet, pdf

{slider open="false" scroll="false" title="TECHNICAL SPECIFICATIONS - Click to hide tableClick here for a full table of specifications"}

INTERNAL BOARDS 2 DSP boards providing 8 controlled outputs
BAND WIDTH 20Hz to 20kHz /-1dB
DISTORTION FACTOR 0.005%
TOTAL DYNAMICS 103dB
EXTERNAL POWER SUPPLY 230V
AUDIO INPUT 4 micro line with XLR balanced
INPUT IMPEDANCE 6.6kohm
PHANTOM POWER selectable, -60dB to +20dB
OUTPUT 8 x XLR balanced, +8dB
EQUALIZERS 9 parametric bands on out standard- 5 filters, parametric out on directivity
DELAY 0.023 to 500ms
INTERFACE Serial, RS232 for programming
USER INTERFACE RP6 Panel
DIMENSIONS (WxHxD) mm 482 (431) x 45 x 200 :19" 1 U
WEIGHT Kg 2.4kg
DATA SHEET

Signal Processing

Coming Soon

Microphones

Coming Soon

Accessories for Liturgy

Coming Soon

Assistive Listening for Transport

Assistive Listening for Transport - UnivoxAudio

Pre-recorded Tour Guides

Pre-recorded Tour Guides

Professional FM Systems

Professional FM Systems

Live Tour Guide Systems

Live Tour Guide System

Fixed Architecture DSP

Fixed Architecture DSP

Open Architecture DSP

Open Architecture DSP

Digital Audio Amplifiers

Digital Audio Open Amps

Speaker Arrays

Speaker Arrays

Amplifiers - Signal Processing

Amplifiers - Signal Processing

Accesories for Liturgy

Microphones - Accesories for Liturgy
